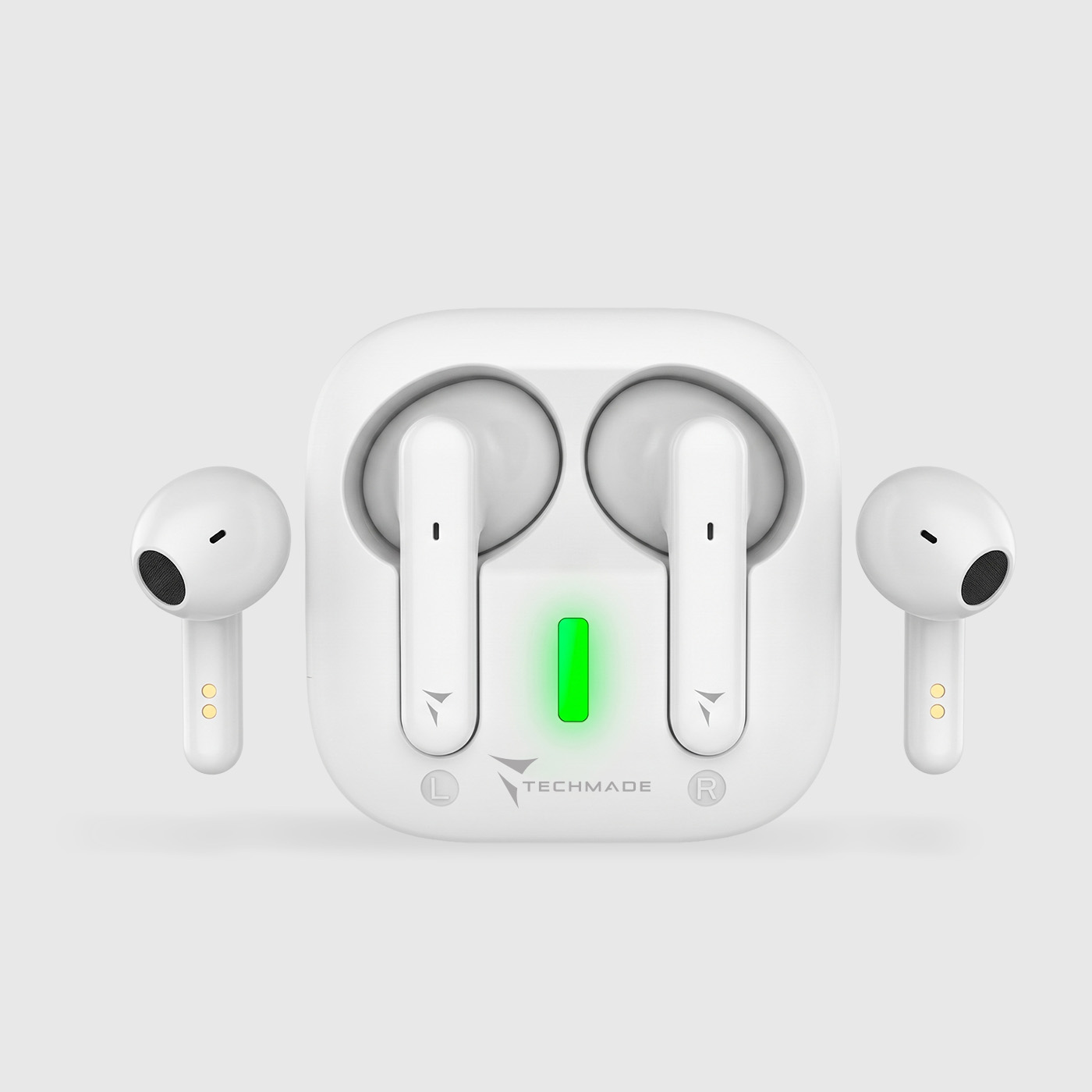

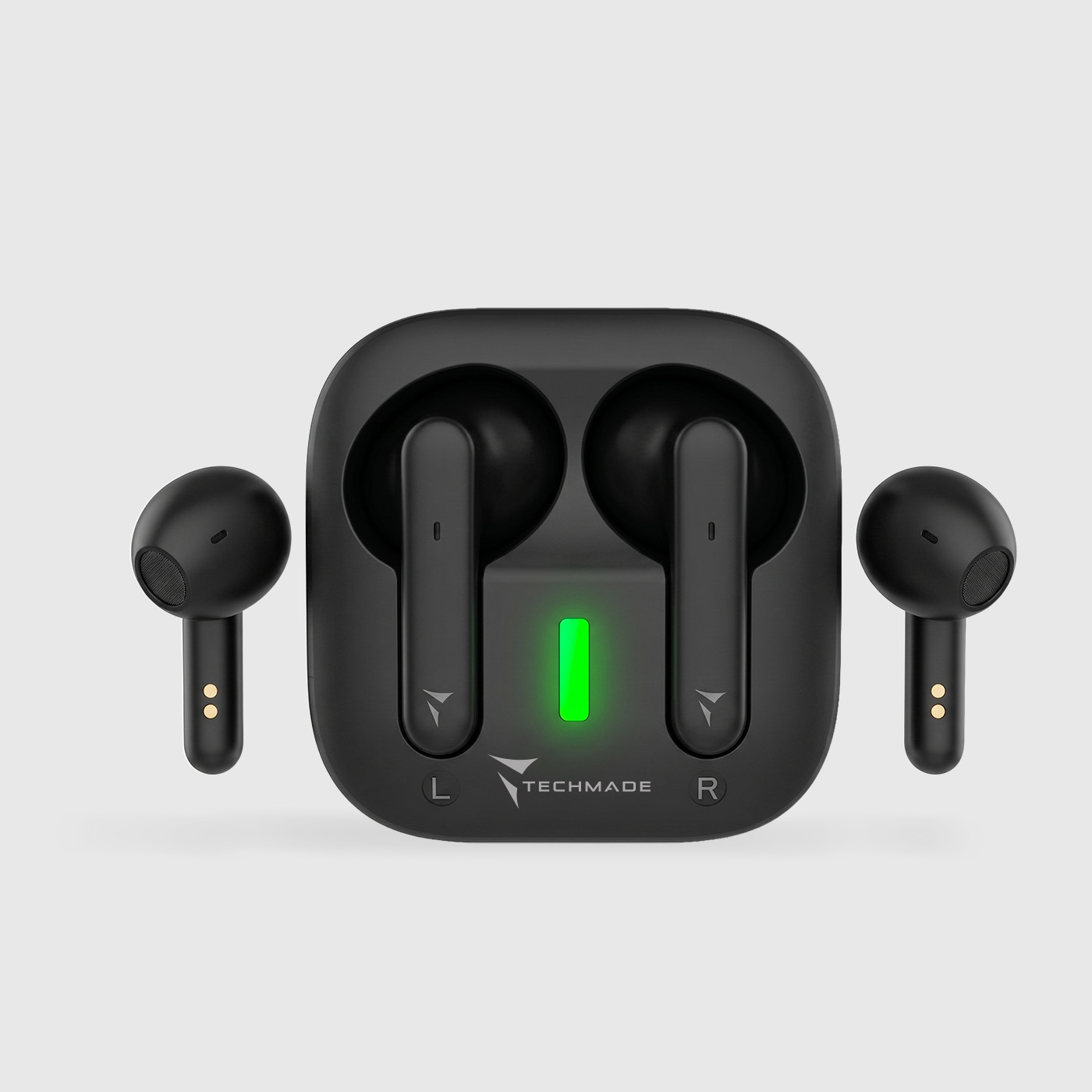

EARBUDS
TM-T51
USER MANUAL
Techmade s.r.l.
P.N.: TM-T51
Rif: TM-T51
F.C: ZW-T51
Description: Auricolari Wireless
Working temperatures: 0° C to 45° C
Trademark: Techmade Srl
Warnings
Read this manual carefully and keep for future reference.
All essential test series have been performed and the
aforementioned product complies with all legal requirements.
Limits in the foreseen improper use or foreseeable improper
use
Foreseeable Misuse
- Do not disassemble the device. If a repair is required,
contact a Techmade sales center or authorized service center.
- Do not subject the device to shocks, bumps or vibrations, it
could damage it.
- Keep away from heat sources (eg radiators or kitchens), direct
sunlight, excessive humidity, wetness, gases, vapors or
flammable solvents.
- Do not recharge the device near flammable materials which
could catch fire due to the heat developed.
- Do not hold the device with wet hands. This could cause
electric shock or seriously damage them.
- Do not use the device when it could cause distractions and
pose a danger (while driving a car, cycling, walking or
operating machine tools).
- Do not immerse or expose the device to liquids.
- Avoid sudden volume spikes with unknown sound systems.
- This product is not a toy. Keep the device out of the reach of
children and pets due to the presence of small parts that could
constitute a choking hazard.
- The battery is integrated into the product. To replace it,
contact competent personnel only. Damage to the battery could
cause a fire and / or explosion hazard. Dispose of it properly.
- Risk of explosion if battery is replaced by an incorrect type.
- Do not throw the battery into a fire or hot oven, or
mechanically crush or cut a battery. Danger of explosion.
- Do not leave the battery in an extremely high temperature or
extremely low air pressure surrounding environment. Danger of
explosion or leakage of flammable liquids or gases. Do not use
in conditions of low atmospheric pressure at high altitudes or
in extremely high or low temperatures.
Please dispose of it properly. (Battery Directive 2006/66/EC)
Identification of the characteristics of the personnel who
will use the machine (physical, competence) and the level of
training required for the users.
No special training is required for use.
Read the instruction manual.
Product warranty
12 months warranty for professional operators.
24 months for the final consumer.
Safety related
- Frequency band: 2402-2480MHZ
- RF Output: 20dbm
Handle the device gently. Protect the device from bumps and
falls.
Environmental (temperature, humidity)
Operating temperatures: 0°C to 45°C
Cleaning level
Disconnect the product from the main power supply before
cleaning. Use a soft, dry cloth. Do not use alcohol or other
cleaning solutions. Do not wash the product with running water.
Drying
Do not attempt to dry the product using a microwave oven,
traditional oven or hairdryer.
Use a dry cloth.
Caution
- To avoid hearing damage, we recommend not exceeding 50% of the
maximum volume on your audio device, always turning the volume
down before use, and limiting use of headphones to one hour or
less per day. Using headphones at high volumes (above 85 dB) or
for extended periods of time (more than one hour per day) can
cause permanent hearing damage. Hearing loss may be gradual and
may not have any warning signs. Therefore, a hearing test and
medical examination are the only way to diagnose hearing loss if
you experience the following symptoms: buzzing or buzzing, and
difficulty understanding speech.
- Do not use headphones when they could cause a distraction or
pose a hazard (while driving, cycling, walking, or operating
machinery).
- Do not immerse or expose headphones to liquids.
- Avoid sudden volume spikes with unfamiliar audio systems.
- Keep headphones out of reach of children due to the presence
of small parts that may pose a choking hazard.
- Consult your doctor or audiologist regularly if you experience
hearing problems, excessive earwax production, or any discomfort
after use.
WEEE Instructions
The European Directive 2012/19/EU on waste electrical and
electronic equipment (WEEE) requires that these devices should
not be disposed of in the normal municipal solid waste stream,
but that they should be collected separately to optimize the
recovery and recycling flow of the materials they are made of
and prevent potential damage to health and the environment due
to the presence of potentially dangerous substances. The
crossed-out bin symbol is shown on all products to remind you of
this.
The waste can be taken to the appropriate collection centers, or
can be delivered free of charge to the distributor upon purchase
of a new equivalent device or without obligation to purchase for
devices smaller than 25cm. For further information on the
correct disposal of these devices, you can contact the relevant
public service.
 |
WASTE SORTING |
| FOLLOW THE INDICATIONS OF
YOUR MUNICIPALITY |
|
| Package
- Paper PAP21 |
Package Contents
1. Earbuds
2. USB-C Cable
3. USer manual
Specifications:
BT Version: V5.4
Operating distance: 10m
Case battery: 30 mAh Lithium ion
Earphone battery: 200 mAh Lithium ion
Impedance: 32Ω
Frequency range: 20Hz-20KHz
Rated power: 3mW
Input connector: USB-C, 5V ⎓ 1A
Note: The power supplied by the charger must be
between the minimum 1 watt required by the radio equipment and
a maximum of 10 watts to achieve maximum charging speed.
| SAFETY | EN IEC 62368-1: 2014+A11:2017 |
| EMC | EN 301 489-1 V2.2.3 |
| EN 301 489-17 V3.2.4 | |
| EN 55032:2015+A11:2020 | |
| EN 55035:2017+A11:2020 | |
| EN 61000-3-2:2019 | |
| EN 61000-3-3:2013+A1:2019 | |
| RADIO | ETSI EN 300 328 V2.2.2 |
| HEALTH | EN 62479:2010 |
