WIRELESS SMART CLOCK

TM-2221

USER MANUAL

TECHMADE S.R.L
Product Code: TM-2221-BB/TM-2221-WH          Ref.: TM-2221
Description: Karaoke Speaker Working temperature: 0° C to 40° C
Brand: Techmade Srl

Warnings
Please read this manual carefully and keep it for future reference.
All essential test series have been performed and the above mentioned product complies with all legal requirements.

Limitations in intended use or foreseeable misuse.
1. Do not disassemble the device. If a repair is necessary, contact a Techmade sales center or assistance. Techmade is not responsible for consequential damages or for damage to property or persons caused by failure to comply with the safety instructions and improper use of the device.
2. Keep out of reach of children.
3. Use the device only for its intended purposes.
4. Do not use if the device, the cable or the electrical socket are defective or damaged.
5. Keep away from heat sources or flammable materials, such as radiators or cookers, from humid or oily environments, such as bathrooms and swimming pools and from sources, dripping or splashing of liquids, such as bathtubs, showers, sinks or other containers. Ensure that the unit is placed on a dry and stable surface. Do not immerse in liquids.
6. The device is suitable for indoor and household use only.
7. Before using, ensure that the electrical specifications match the electrical requirements of the location where it will be used.
8. Do not leave the device unattended during use.
9. Do not overload the device. The unit may overheat with excessive use. Remove the device to be charged when it is fully charged. Never charge for more than 7 hours.
10. The battery is built into the product. Only have it replaced by qualified personnel. Damage to the battery may cause fire and/or explosion hazard. Dispose of it properly. (Battery Directive 2006/66/EC).

Identifying the characteristics of the personnel who will use the machine (physical, competence) and the level of training required for users:
No special training for use. Read the user manual.

Product warranty:
24 months warranty for end consumers and 12 months for professional operators. Opening or attempting to open the product voids the warranty and may constitute a safety hazard.

Safety related:
Max radio freq. Pow.: 35.36dBuA/m @3m
Exposure value: 3.5281 V/m @10cm
Handle the device with care. Protect the device from impacts and falls.
Do not dispose of the device in a fire.

Cleaning level:
Remove from the electrical outlet. Do not attempt to clean the unit with chemical solvents, as this may damage the finish. Wipe with a clean, dry or slightly damp cloth. Do not clean the inside of the device.

Drying:
Do not attempt to dry the product using a microwave oven, traditional oven or a hair dryer. Use a dry cloth or a light detergent.

WEEE Instructions
The European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) requires that these devices should not be disposed of in the normal municipal solid waste stream, but that they should be collected separately to optimize the recovery and recycling flow of the materials they are made of and prevent potential damage to health and the environment due to the presence of potentially dangerous substances. The crossed-out bin symbol is shown on all products to remind you of this. The waste can be taken to the appropriate collection centers, or can be delivered free of charge to the distributor when purchasing a new equivalent device or without obligation to purchase for devices smaller than 25cm.
For further information on the correct disposal of these devices, you can contact the relevant public service.

	WASTE SORTING
	FOLLOW THE INDICATIONS OF YOUR MUNICIPALITY
	Package - Paper PAP22

Technical specifications

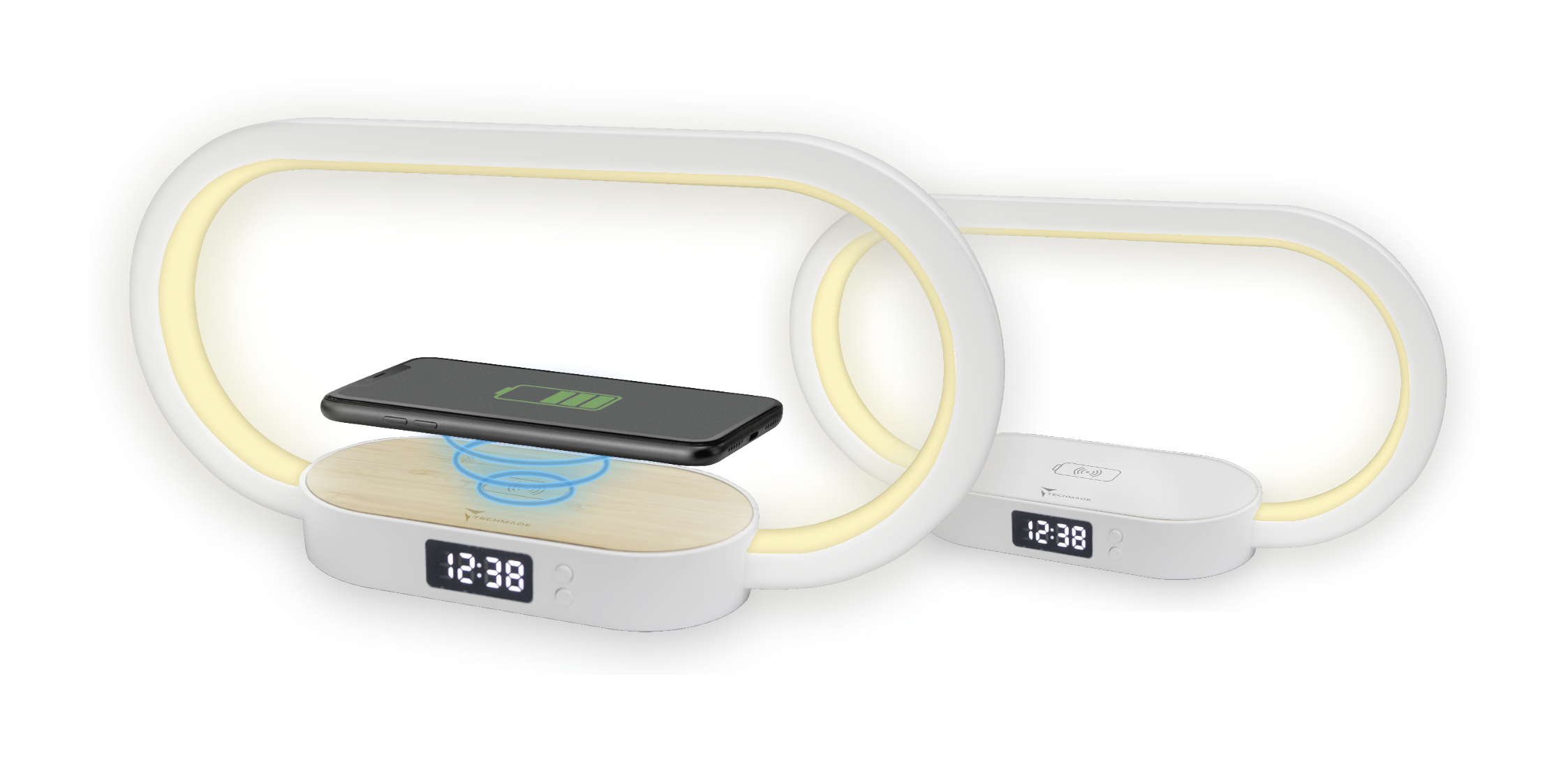

Wireless charger with alarm clock and touch LED lamp

- Wireless charging function for electronic devices such as smartphones and earphones (equipped with wireless charging)
- LED light adjustable via TOUCH button (Warm Light, Cold Light and Natural Light)
- Digital Clock
- USB-C cable - 1 m
- Input: 9V ⎓3A / 12V⎓2.5A
- Output: 5W / 7.5W / 10W/ 15W
- Frequency band: 110kHz - 148kHz
- Battery (non removable): CR2025

*Compatible with devices equipped with wireless charging

Instructions for use

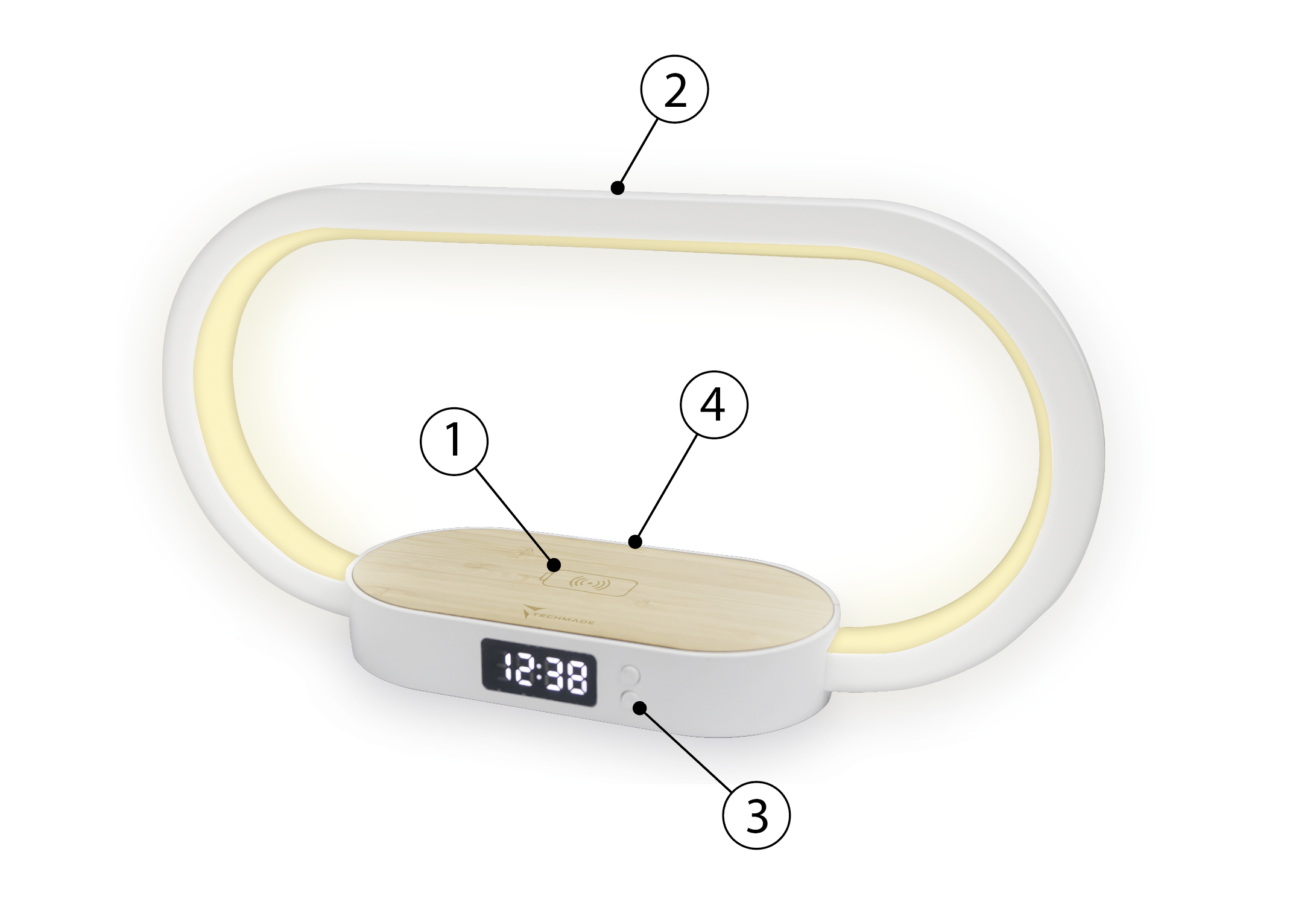

1) Charging base
2) Touch button for LED
3) Time adjustment buttons
4) USB-C port

Before use

- Make sure the device is not damaged. If the product is damaged, do not use it and contact the seller.
- Use a charger:
   5V ⎓ 2A - 10W (minimum requirement)
   9V ⎓ 3A - 20W (recommended requirement)
- Use only the cable provided
- Make sure the device to be charged is compatible with wireless charging
- Place the device in the center of the charging area (do not leave the device charging for long periods of time or overnight)
- Make sure there are no obstructions between the charging area and the device.


Touch Button

After connecting the device to the power supply:

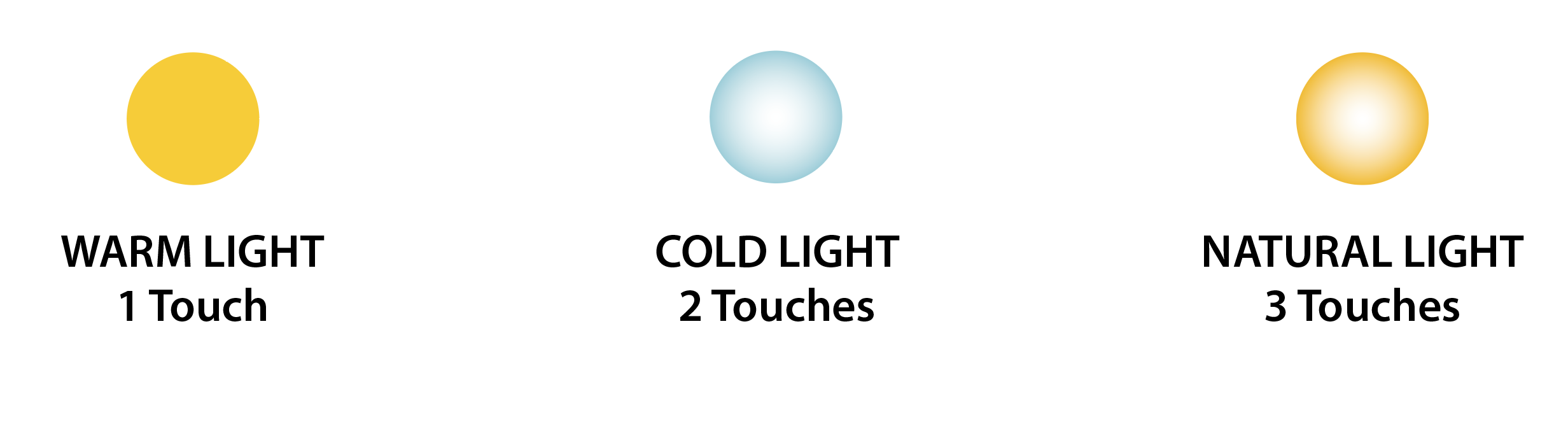

- Press the touch button to turn on the light. There are 3 different types of light:





- After choosing the type of light, press and hold to adjust the intensity from very bright to dim and repeat to adjust the intensity from dim to very bright


Time adjustment buttons

- Display brightness adjustment: press the ▲ button to choose the brightness level between off, dim, medium and very bright.

- Time reset: press and hold the ▲ button to reset the time to 0:00.

- 12/24h: press the ▼ button to choose between 12h and 24h mode

- Time adjustment: press and hold the ▼ button, the hour and minute sections will start flashing; press the ▼ button again to choose between hour and minute (the chosen hour or minute section will start flashing), then press the ▲ button to set the correct time (press once to increase by 1 and hold to scroll quickly).

After setting the time, press the ▼ button again to finish.
N.b.: during adjustment, if no button is  pressed for 30 seconds, the clock will automatically return to display mode.
