CUFFIE WIRELESS
TM-080
USER MANUAL
Techmade s.r.l.
P.N./Rif.: TM-080
F.C: ZW-080
Description: Cuffia Wireless
Working temperatures: 0° C to 45° C
Trademark: Techmade Srl
Warnings
Read this manual carefully and keep for future reference.
All essential test series have been performed and the
aforementioned product complies with all legal requirements.
Limits in the foreseen improper use or foreseeable improper use
- To avoid hearing damage, we recommend that you do not exceed 50%
of the maximum volume of your audio device, always make sure to
turn down the volume before using it and limit the use of
headphones to one hour or less per day . Using headphones at high
volume (above 85dB) or for prolonged periods of time (over an hour
a day) can cause permanent hearing damage. They can be gradual and
with a lack of warning signs, therefore carrying out a hearing
check and a medical examination are the only way to diagnose any
hearing damage if you notice the following symptoms: Buzzing or
buzzing and difficulties in understanding the dialogues.
- Do not use headphones when they could cause distractions and
pose a danger (while driving a car, cycling, walking or operating
machine tools)
- Do not immerse or expose the device to liquids.
- Avoid sudden volume spikes with unknown audio systems.
- Keep out of reach of children due to the presence of small parts
which could constitute a choking hazard.
- Contact your doctor or audiologist regularly in case of hearing
problems, excessive earwax production or any discomfort after use.
- The headphones are intended for personal use so if you are
sharing them with others, replace or clean the ear pads.
- Do not disassemble the device. If a repair is needed, contact a
Techmade sales center or service.
- Keep away from heat sources such as radiators or cookers.
- Do not expose the device to direct sunlight for an extended
period.
- Protect the device from bumps and falls.
- For battery recharging, use only the recharging cable supplied
with the product. Use a computer or 5V 1A
adapter (not included).
- Risk of explosion if battery is replaced by an incorrect type.
- Do not throw the battery into a fire or hot oven, or
mechanically crush or cut a battery. Danger of explosion.
- Do not leave the battery in an extremely high temperature or
extremely low air pressure surrounding environment. Danger of an
explosion or the leakage of flammable liquids or gases. Do not use
in conditions of low atmospheric pressure at high altitudes or in
extremely high or low temperatures.
- The battery is integrated into the product. To replace it,
contact competent personnel only. Damage to the battery could
cause a fire and / or explosion hazard. Dispose of it properly.
- Risk of explosion if battery is replaced by an incorrect type.
- Do not throw the battery into a fire or hot oven, or
mechanically crush or cut a battery. Danger of explosion.
- Do not leave the battery in an extremely high temperature or
extremely low air pressure surrounding environment. Danger of
explosion or leakage of flammable liquids or gases. Do not use in
conditions of low atmospheric pressure at high altitudes or in
extremely high or low temperatures.
Please dispose of it properly. (Battery Directive 2006/66/EC)
Identification of the characteristics of the personnel who
will use the machine (physical, competence) and the level of
training required for the users.
No special training is required for use.
Read the instruction manual.
Product warranty
12 months warranty for professional operators.
24 months for the final consumer.
Safety related
- Frequency band: 2402-2480MHZ
- RF Output: 20dbm
Handle the device gently. Protect the device from bumps and falls.
Environmental (temperature, humidity)
Operating temperatures: 0°C to 45°C
Cleaning level
Disconnect the product from the main power supply before cleaning.
Use a soft, dry cloth. Do not use alcohol or other cleaning
solutions. Do not wash the product with running water.
Drying
Do not attempt to dry the product using a microwave oven,
traditional oven or hairdryer.
Use a dry cloth.
Caution
- To avoid hearing damage, we recommend not exceeding 50% of the
maximum volume on your audio device, always turning the volume
down before use, and limiting use of headphones to one hour or
less per day. Using headphones at high volumes (above 85 dB) or
for extended periods of time (more than one hour per day) can
cause permanent hearing damage. Hearing loss may be gradual and
may not have any warning signs. Therefore, a hearing test and
medical examination are the only way to diagnose hearing loss if
you experience the following symptoms: buzzing or buzzing, and
difficulty understanding speech.
- Do not use headphones when they could cause a distraction or
pose a hazard (while driving, cycling, walking, or operating
machinery).
- Do not immerse or expose headphones to liquids.
- Avoid sudden volume spikes with unfamiliar audio systems.
- Keep headphones out of reach of children due to the presence of
small parts that may pose a choking hazard.
- Consult your doctor or audiologist regularly if you experience
hearing problems, excessive earwax production, or any discomfort
after use.
WEEE Instructions
The European Directive 2012/19/EU on waste electrical and
electronic equipment (WEEE) requires that these devices should not
be disposed of in the normal municipal solid waste stream, but
that they should be collected separately to optimize the recovery
and recycling flow of the materials they are made of and prevent
potential damage to health and the environment due to the presence
of potentially dangerous substances. The crossed-out bin symbol is
shown on all products to remind you of this.
The waste can be taken to the appropriate collection centers, or
can be delivered free of charge to the distributor upon purchase
of a new equivalent device or without obligation to purchase for
devices smaller than 25cm. For further information on the correct
disposal of these devices, you can contact the relevant public
service.
 |
WASTE SORTING |
| FOLLOW THE INDICATIONS OF YOUR
MUNICIPALITY |
|
| Package
- Paper PAP21 |
Package Contents

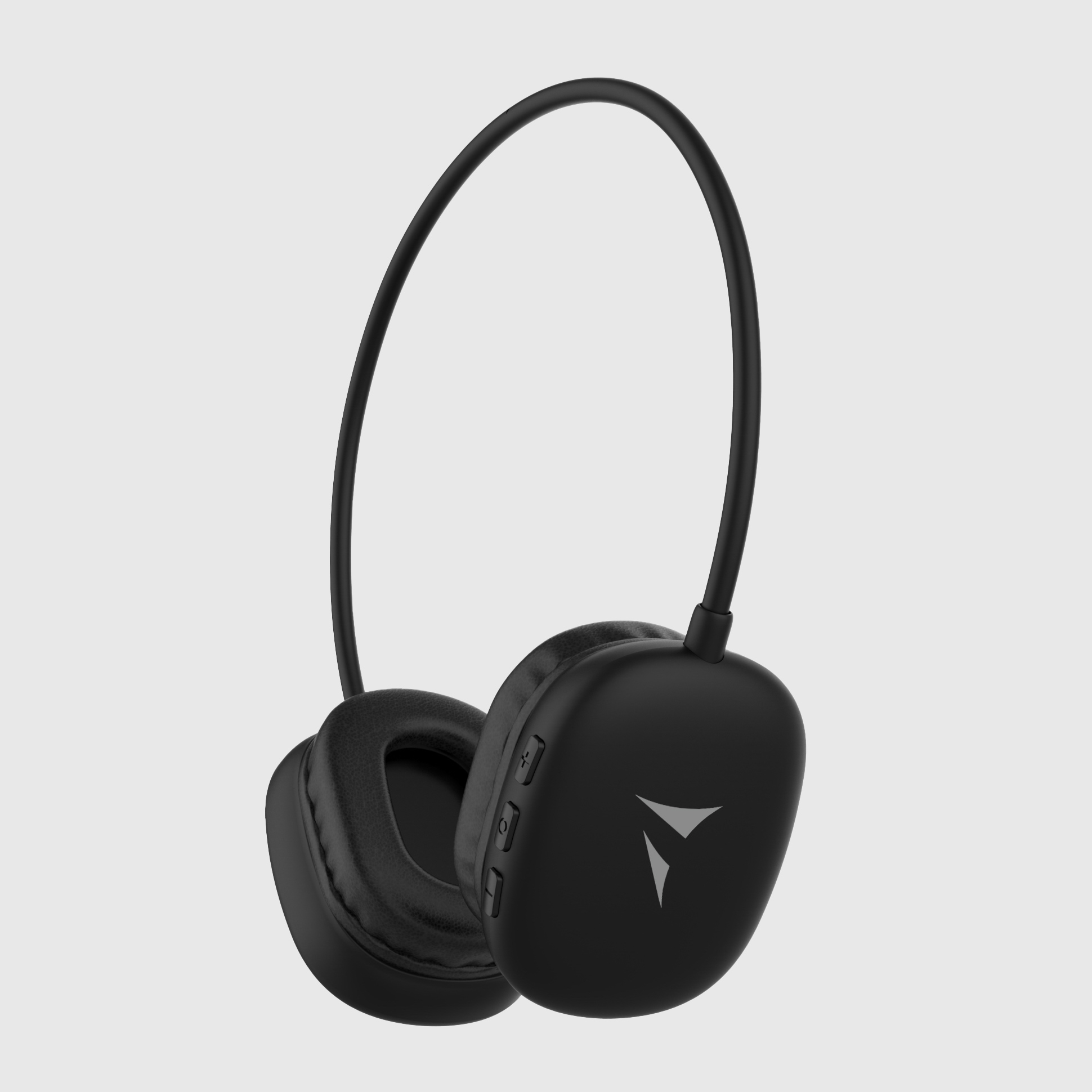

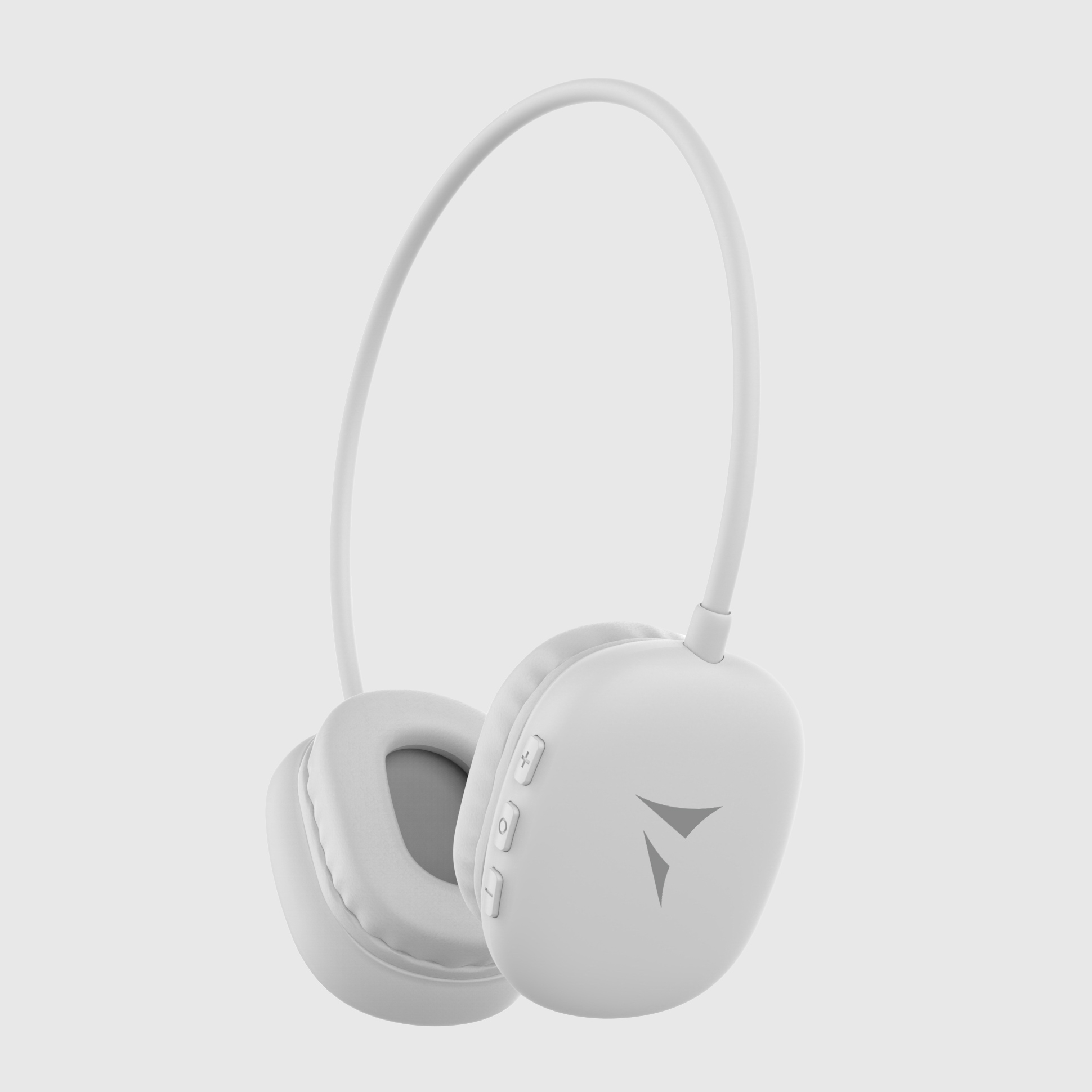

1. Headset
2. USB-C Cable
3. USer manual
Specifications:
BT Version: V5.4
Operating distance: 10m
Battery: 180 mAh Lithium ion
Impedance: 32Ω
Frequency range: 20Hz-20KHz
Rated power: 10mW
Input connector: USB-C, 5V ⎓ 1A
Output connector: Jack 3.5mm
Note: The power supplied by the charger must be
between the minimum 1 watt required by the radio equipment and a
maximum of 10 watts to achieve maximum charging speed.
Play/Pause Music
Short press the multi-function button once during playback.
| SAFETY | EN IEC 62368-1: 2014+A11:2017 |
| EMC | EN 301 489-1 V2.2.3 |
| EN 301 489-17 V3.2.4 | |
| EN 55032:2015+A11:2020 | |
| EN 55035:2017+A11:2020 | |
| RADIO | ETSI EN 300 328 V2.2.2 |
| HEALTH | EN 62479:2010 |
| EN 55663:2017 |
