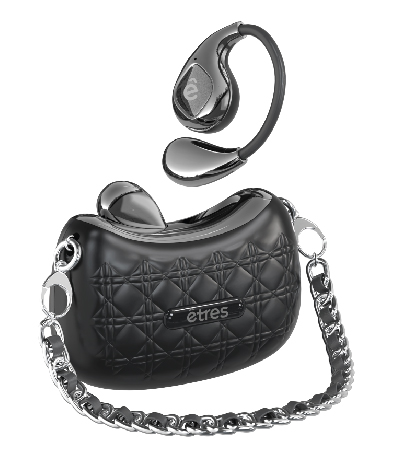

BAG EARBUDS
ET-YX46
USER MANUAL
ÊTRES
Product Code/Ref.: ET-YX46
Description: Auricolari Wireless (Earbuds)
Model: YX46
Temperature: -20°C to 60°C
Trademark: TECHMADE S.R.L.
Warnings
Read this manual carefully and keep it for future reference.
Limits in the foreseen improper use or foreseeable improper
use
- Do not disassemble the headphones. If repairs are necessary,
contact a sales center or Techmade service.
- Do not subject the headphones to shock, impact, or vibration.
- Keep away from heat sources (e.g., radiators or stoves).
- Do not handle the headphones with wet hands. This could cause
electric shock or serious damage.
- Do not use headphones when they may distract you or pose a
hazard (while driving, cycling, walking, or operating power
tools).
- Do not immerse or expose headphones to liquids.
- Avoid sudden volume spikes with unfamiliar audio systems.
- Keep headphones out of reach of children due to the presence
of small parts that may pose a choking hazard.
- The battery is integrated into the product. It cannot be
removed by the user but must be disposed of at a dedicated
recycling center. Damage to the battery may cause a fire and/or
explosion. Dispose of it properly. (Regulation 2023/1542 on
batteries)
- Do not charge the device near flammable materials that could
catch fire due to the heat generated.
- Do not use the device in a sauna or steam room.
- The device should not be exposed to dripping or splashing, and
objects filled with liquids, such as vases, should not be placed
on the device.
- Do not place the unit near water sources, such as sinks,
bathtubs, washing machines, or swimming pools. Ensure the unit
is placed on a dry, stable surface.
- TECHMADE is not responsible for performance issues caused by
applications from vendors other than TECHMADE.
- Do not modify the product in any way. TECHMADE is not
responsible for performance issues or incompatibilities caused
by modifying registry settings or operating system software.
Attempting to customize the operating system may cause the
product or applications to malfunction.
- Risk of explosion if battery is replaced with an incorrect
type.
- Do not throw the battery into a fire or a hot oven, or
mechanically crush or cut a battery. Risk of explosion.
- Do not leave the battery in an extremely high temperature or
low air pressure environment. Risk of explosion or leakage of
flammable liquids or gases. Do not use in low atmospheric
pressure conditions at high altitudes or in extremely high or
low temperatures.
Identification of the characteristics of the personnel who
will use the machine (physical, competence) and the level of
training required for the users.
No special training is required for use.
Read the instruction manual.
Product warranty
12 months warranty for professional operators.
24 months for the final consumer.
Safety related
BT Frequency Band: 2.402-2.480 GHz
RF OUTPUT: Class 2 (-6dBm - +4dBm)
Maximum Frequency: 5mW
Transmission power: 3.67dBm
Handle the device gently.
Protect the device from impacts and drops.
Environmental (temperature, humidity)
Operating temperatures: 0°C to 45°C
Cleaning level
Use a soft, dry cloth.
Do not use alcohol or other cleaning solutions.
Drying
Do not attempt to dry the product using a microwave,
conventional oven, or hair dryer.
Use a dry cloth or mild detergent.
Caution
- To avoid hearing damage, we recommend not exceeding 50% of the
maximum volume on your audio device, always turning the volume
down before use, and limiting use of headphones to one hour or
less per day. Using headphones at high volumes (above 85 dB) or
for extended periods of time (more than one hour per day) can
cause permanent hearing damage. Hearing loss may be gradual and
may not have any warning signs. Therefore, a hearing test and
medical examination are the only way to diagnose hearing loss if
you experience the following symptoms: buzzing or buzzing, and
difficulty understanding speech.
- Do not use headphones when they could cause a distraction or
pose a hazard (while driving, cycling, walking, or operating
machinery).
- Do not immerse or expose headphones to liquids.
- Avoid sudden volume spikes with unfamiliar audio systems.
- Keep headphones out of reach of children due to the presence
of small parts that may pose a choking hazard.
- Consult your doctor or audiologist regularly if you experience
hearing problems, excessive earwax production, or any discomfort
after use.
WEEE Instructions
The European Directive 2012/19/EU on waste electrical and
electronic equipment (WEEE) requires that these devices should
not be disposed of in the normal municipal solid waste stream,
but that they should be collected separately to optimize the
recovery and recycling flow of the materials they are made of
and prevent potential damage to health and the environment due
to the presence of potentially dangerous substances. The
crossed-out bin symbol is shown on all products to remind you of
this.
The waste can be taken to the appropriate collection centers, or
can be delivered free of charge to the distributor upon purchase
of a new equivalent device or without obligation to purchase for
devices smaller than 25cm. For further information on the
correct disposal of these devices, you can contact the relevant
public service.
 |
WASTE SORTING |
| FOLLOW THE INDICATIONS OF
YOUR MUNICIPALITY |
|
| Package
- Paper PAP21 |
|
| Support
- Plastic PVC3 |
Package Contents
1. Earbuds
2. USB-C Cable
3. USer manual
Specifications:
Touch control buttons
Speaker: 14 x 4.6 mm high, 32 ± 15% Ω
Input power: 5V 1A
Sensitivity: 121.5 ± 3 dB
Frequency response: 20Hz ~ 20KHz
BT version: V5.4
Earbud battery: 28 mAh x 2, 3.7V, 0.104 Wh Li-ion
Power bank battery: 250 mAh, 3.7V, 0.925 Wh Li-ion
Operating distance: ≥ 15 m

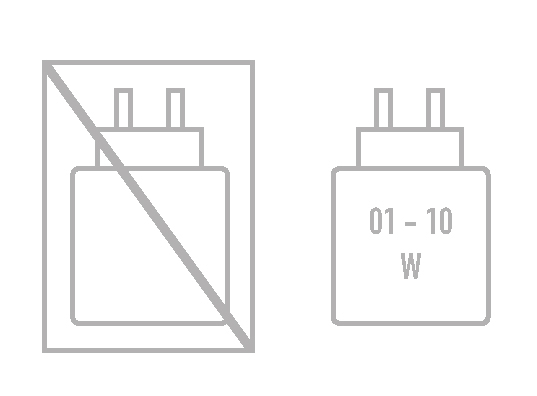

Note: The power supplied by the charger must be
between the minimum 1 watt required by the radio equipment and
a maximum of 10 watts to achieve maximum charging speed.
You can integrate AI functions by downloading the app using the
following QR code:
N.B.: For setup, follow the instructions in the dedicated guide.
| SAFETY | EN IEC 62368-1: 2020+A11:2020 |
| EMC | EN 301 489-1 V2.2.3 |
| EN 301 489-17 V3.2.4 | |
| EN-61000-3-2:2019/A1:2021 | |
| EN-61000-3-3:2013/A2:2021 | |
| RADIO | ETSI EN 300 328 V2.2.2 |
| ETSI EN 55663 Ed.2017 | |
| HEALTH | EN 62479 Ed.2010 |
